Cool 2 rooms with one condenser

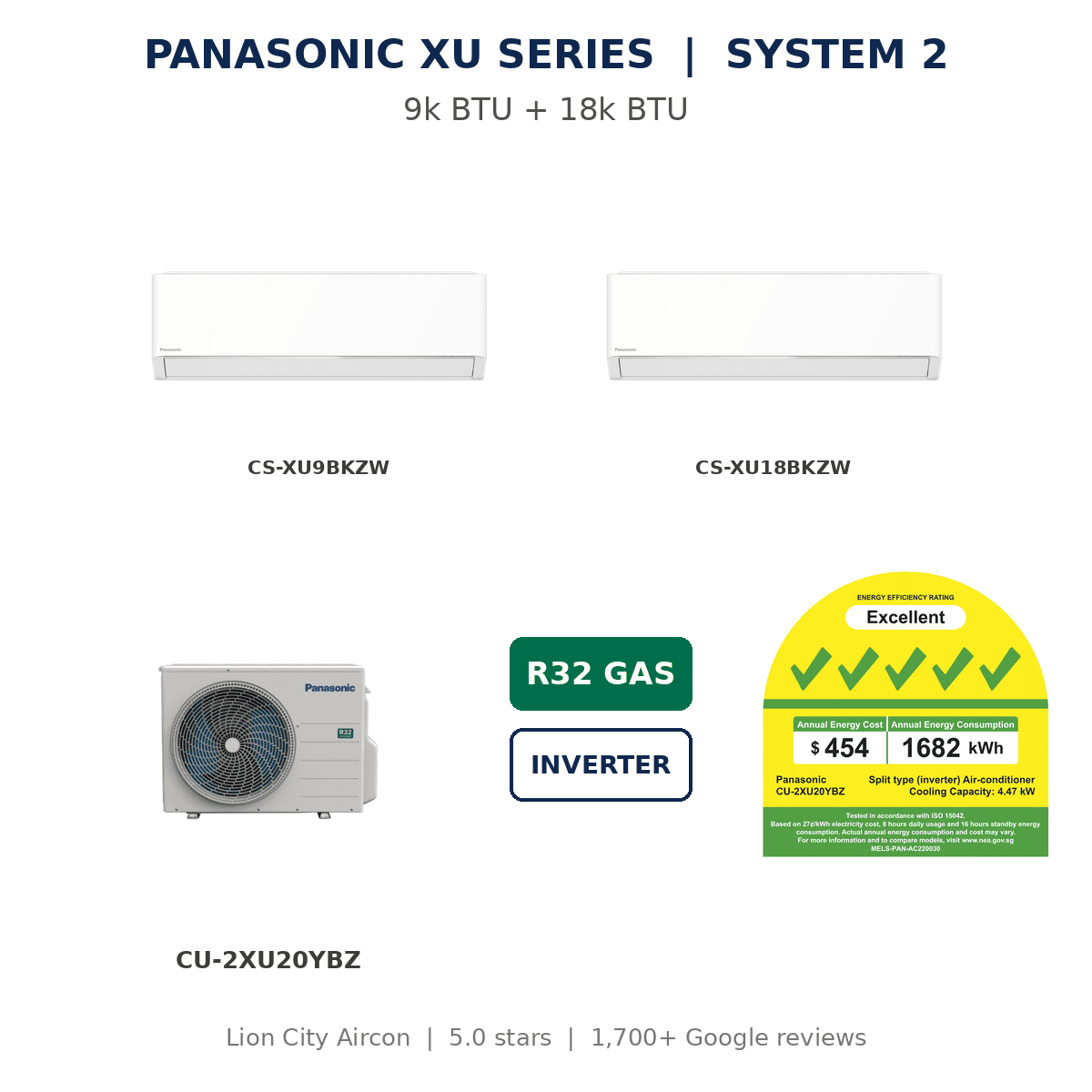

The Panasonic XU Series System 2 pairs the CU-2XU20YBZ outdoor unit with 9k + 18k BTU wall mounted fan coils. 5-tick NEA rating (Excellent), R32 refrigerant, Panasonic inverter technology and built in nanoe X air purification.
This is an officially supported Panasonic combination, verified against Panasonic’s XU Series combination capacity tables for the CU-2XU20YBZ. Need a different mix of rooms? WhatsApp us: we check any combination against Panasonic’s official tables instantly and tell you straight whether it works.
One price, no surprises
The price you see includes the full equipment set AND standard installation in an HDB or BTO flat.
Included in the price:
- CU-2XU20YBZ outdoor condensing unit
- 1x CS-XU9BKZW indoor fan coil unit (9k BTU / 9,550 Btu/h)
- 1x CS-XU18BKZW indoor fan coil unit (18k BTU / 17,100 Btu/h)
- Standard HDB/BTO installation: piping, trunking, drainage, mounting, vacuum and commissioning
- 1-year Lion City workmanship warranty on top of the Panasonic manufacturer warranty
Charged separately, only if your home needs it:
- Stainless steel compressor bracket, +$150 if your condenser cannot sit directly on the ledge
- Ceiling works: cutting, patching and painting if new pipes must run through false ceilings, quoted at site survey
- New or additional isolator, installed by the licensed partner electricians we have worked with and trust, quoted separately
- Longer than standard pipe runs, quoted at site survey
- Prices exclude 9% GST. Condo and landed installations are quoted after site survey
Installed properly, with materials that last
Premium single-piece insulation on gas pipes, minimum 16mm drainage with a proper downward gradient at every section. Read how we install on our aircon installation page.
Specifications
System performance (official Panasonic combination table figures)
| Nominal cooling capacity (rooms rated individually) | 7.8 kW total |
| Cooling capacity, all rooms running together | 4.20 kW total |
| Cooling capacity range (inverter min ~ max) | 1.50 ~ 6.40 kW |
| Rated input power | 830 W (range 250 ~ 1,800 W) |
| Running current (220V / 240V) | 4.0 / 3.7 A |
| Moisture removal per room | 1.0 + 1.6 L/h |
| Refrigerant | R32 |
| NEA energy rating | 5 ticks (Excellent) |
| Power supply | Single phase, 220-240V, 50Hz |
Dimensions and weights
| Unit | Dimensions (H x W x D) | Weight |
|---|---|---|
| CU-2XU20YBZ (outdoor) | 619 x 824 x 299 mm | 35 kg |
| CS-XU9BKZW (indoor) | 295 x 890 x 244 mm | 10 kg |
| CS-XU18BKZW (indoor) | 295 x 1,060 x 249 mm | 12 kg |
Refrigerant piping: 6.35mm liquid / 9.52mm gas per room. Official NEA label figures for the CU-2XU20YBZ: annual energy cost $454 / 1,682 kWh (tested at 27 cents/kWh, 8 hours daily).
The honest detail other shops skip
Total connected capacity of this combination is 7.8 kW. When all 2 rooms cool at the same time, the CU-2XU20YBZ delivers about 4.20 kW shared between rooms per Panasonic’s official combination table, and each room gets less than its solo rating. For most homes running bedrooms at night and the living room by day, this works beautifully. WhatsApp us for the exact per room simultaneous figures and honest sizing advice for your floor plan.
Grants
As a 5-tick system this combination qualifies for HDB Climate Vouchers. Running a business? Read our EEG grant guide and WhatsApp us to confirm eligibility of this model for your premises.
